Why Faucet Cartridges Matter More Than Ever in 2026
In 2026, faucet buyers are no longer asking only about design or price.
They are increasingly asking one critical question: which faucet cartridge lasts longer and leaks less.
The faucet cartridge is the internal control unit that directly determines water flow, temperature balance, and sealing performance.
More than 80% of faucet leakage cases originate from cartridge wear, deformation, or internal seal failure.
With rising labor costs and stricter water-efficiency standards worldwide, a leaking faucet is no longer a minor inconvenience.
For property developers, hotel operators, and importers, cartridge reliability now directly affects long-term maintenance cost.
Modern low-maintenance faucets rely heavily on advanced cartridge technology.
Choosing the wrong faucet cartridge type can result in dripping, handle stiffness, temperature instability, and premature replacement.
In previous decades, cartridge design was often overlooked in favor of external appearance.
In 2026, the cartridge has become the core performance indicator of any quality faucet.
This guide explains all major faucet cartridge types, how they work, and which designs perform best under real-world conditions.
By the end of this article, you will clearly understand which faucet cartridge leaks the least and lasts the longest.

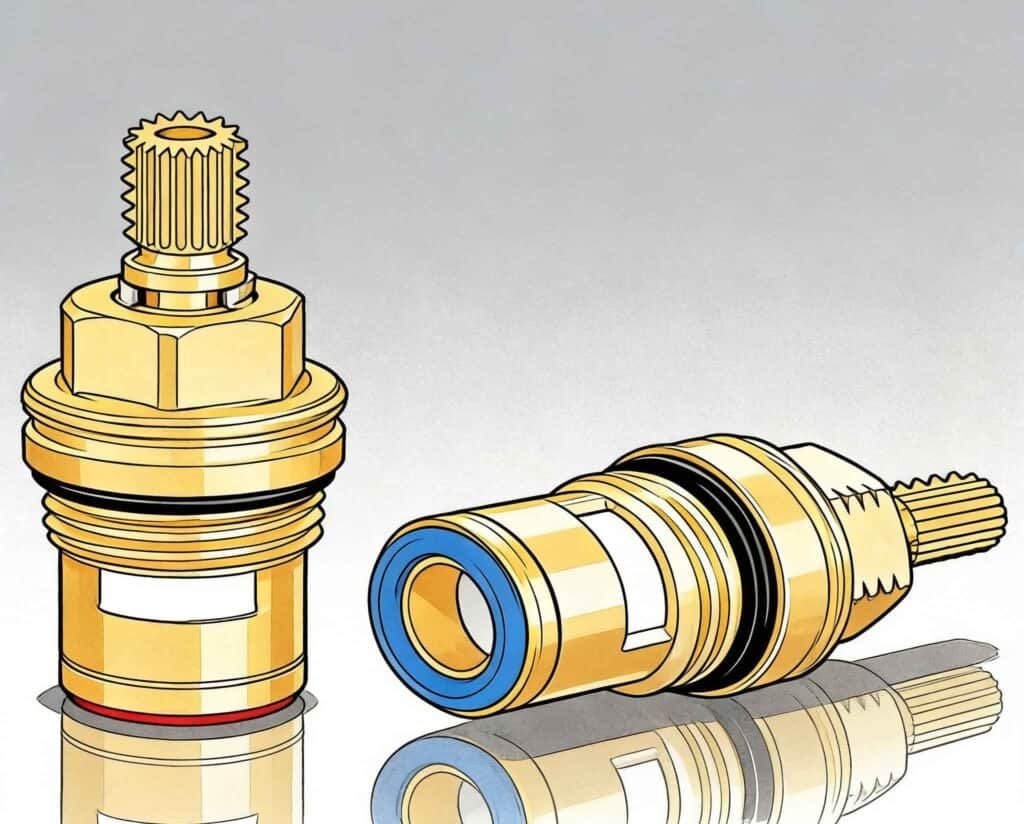

What Is a Faucet Cartridge? (Simple Definition for Buyers)
A faucet cartridge is the internal component that controls water on/off, flow rate, and temperature mixing.
It sits inside the faucet body and replaces traditional valve-and-washer systems.
Unlike older compression valves, a modern faucet cartridge integrates multiple functions into one sealed unit.
This includes pressure control, directional flow, and long-term sealing.

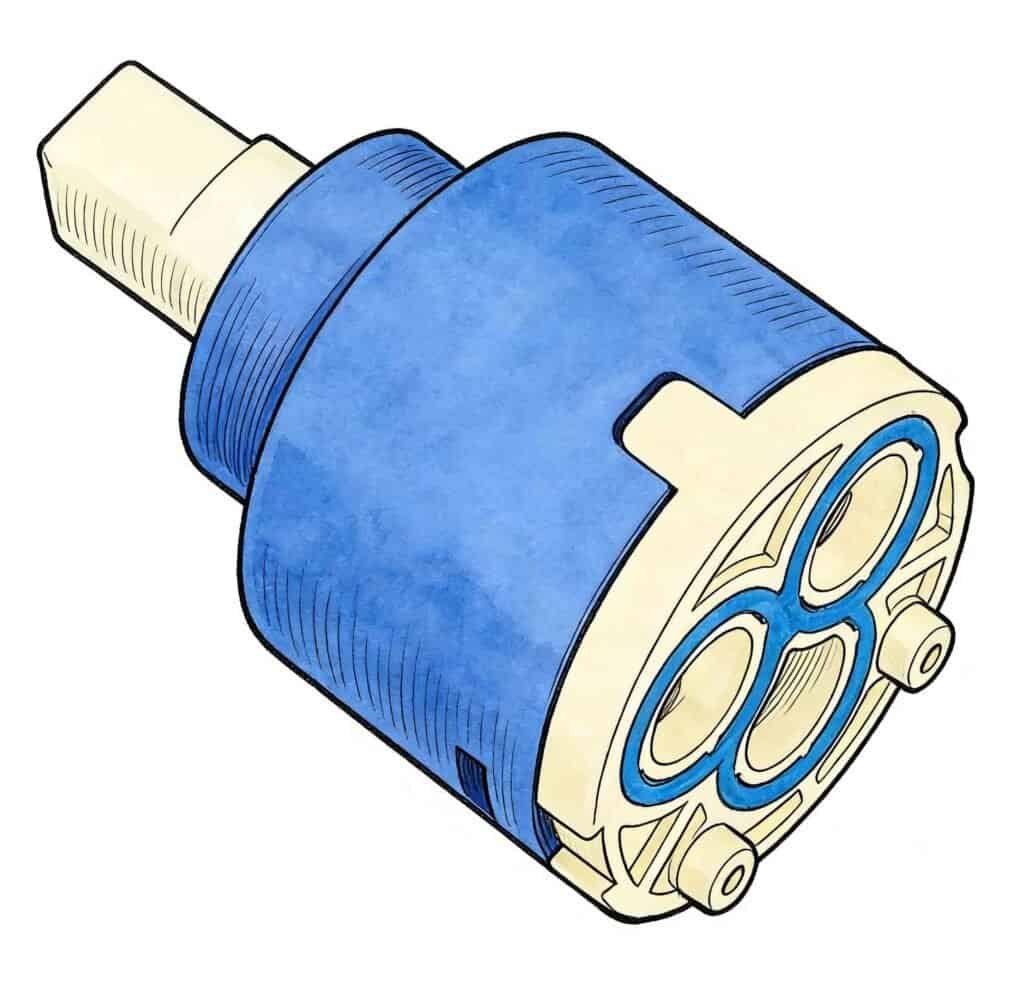

In practical terms, the faucet cartridge is the heart of the faucet.
If the cartridge fails, the faucet will leak, even if the outer body remains intact.
Most single-handle faucets use a cartridge to mix hot and cold water.
Dual-handle faucets may use two separate cartridges or valve-based cartridge assemblies.
The quality of a faucet cartridge directly affects user experience.
Smooth handle operation, stable temperature, and drip-free performance all depend on cartridge precision.
From a maintenance perspective, cartridge-based faucets are easier to service than older valve systems.
In many cases, replacing the cartridge can restore full functionality without replacing the entire faucet.
However, not all faucet cartridges are the same.
Different cartridge types vary significantly in lifespan, leakage resistance, and maintenance requirements.
Understanding faucet cartridge types is essential for selecting a faucet that performs reliably over years of daily use.
This is especially important for commercial projects and bulk purchasing decisions.

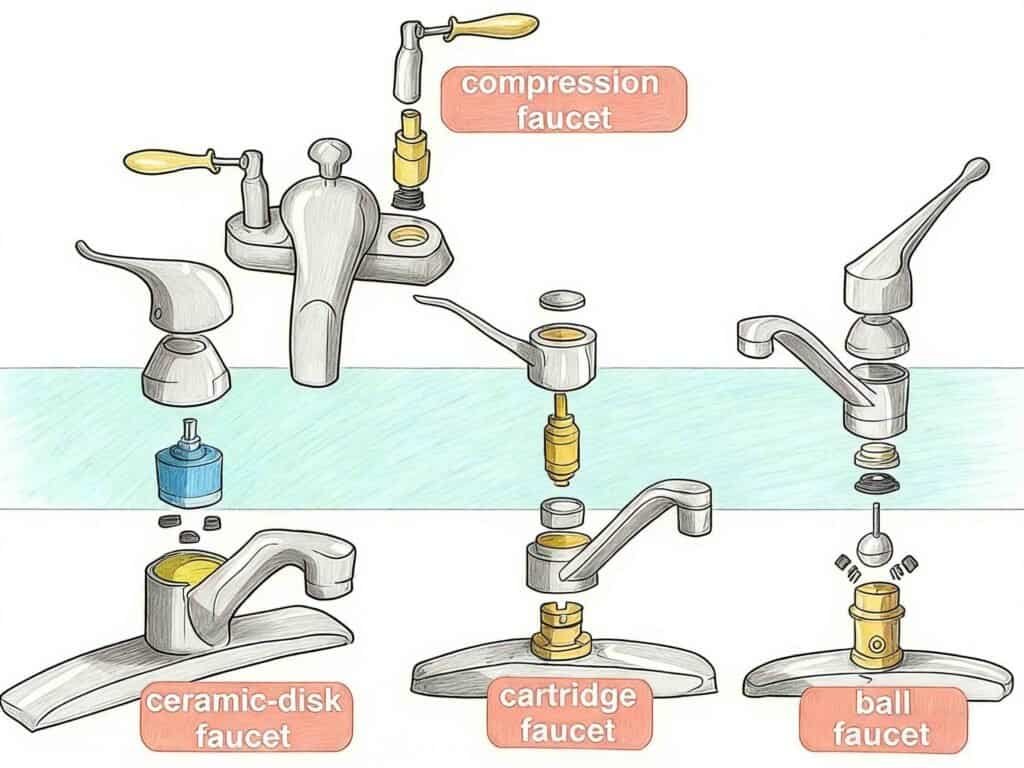

Complete Classification of Faucet Cartridge Types (2026)
In 2026, faucet cartridge technology has largely stabilized into several mainstream categories.
However, performance differences between cartridge types remain significant, especially in leakage control and service life.
Understanding these faucet cartridge types helps buyers avoid hidden maintenance risks.
It also explains why some faucets fail early while others operate reliably for years.

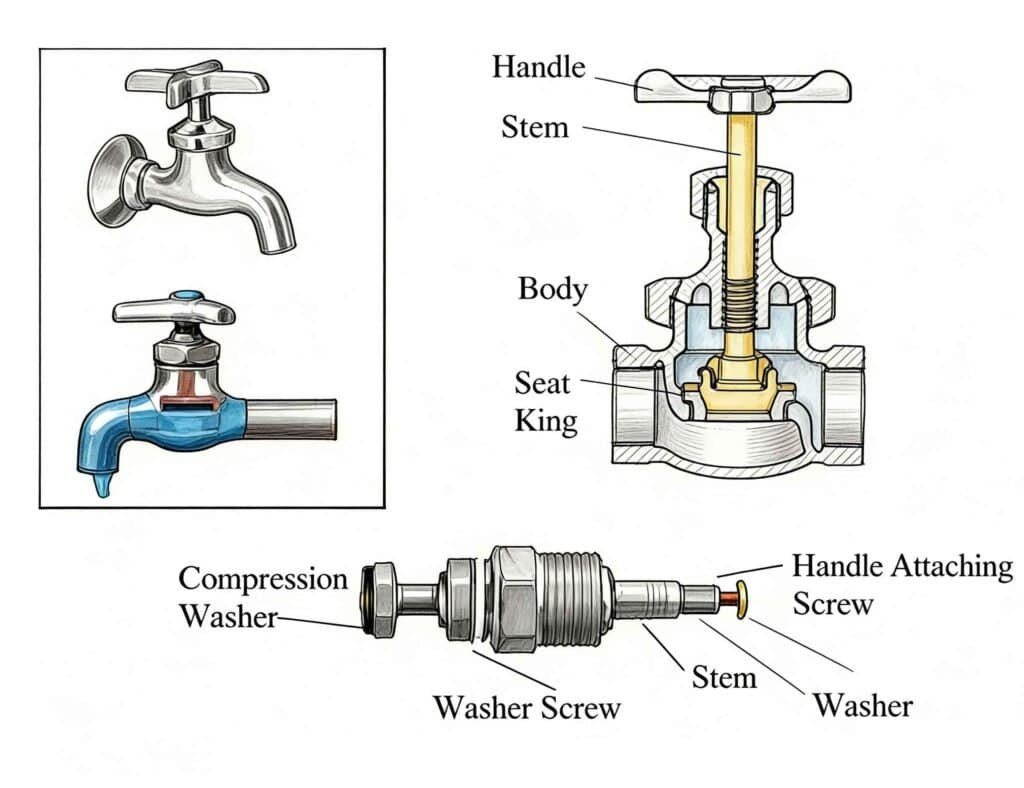

3.1 Compression Faucet Cartridges (Traditional Washer-Based Design)
Compression faucet cartridges are the oldest cartridge design still found on the market.
They rely on a rubber washer that compresses against a valve seat to stop water flow.
Every time the faucet is turned on or off, the washer experiences friction and pressure.
Over time, this repeated compression leads to deformation and material fatigue.
From a leakage perspective, compression cartridges are highly vulnerable.
Even minor wear on the washer can result in continuous dripping.
Compression faucet cartridges typically have the shortest lifespan among all cartridge types.
They also require frequent maintenance or washer replacement.
In 2026, compression cartridges are mainly used in low-cost or legacy plumbing systems.
They are rarely recommended for modern low-maintenance faucet applications.
3.2 Ball Faucet Cartridges (Early Single-Handle Technology)
Ball faucet cartridges were one of the first solutions for single-handle faucets.
They use a hollow metal or plastic ball with slots that align to control water flow and temperature.
The ball rotates inside a chamber, supported by springs and rubber seals.
Multiple sealing points are required to prevent leaks.
This design allows flexible water control but increases structural complexity.
More seals mean more potential failure points.
Ball faucet cartridges generally offer moderate lifespan performance.
However, leakage risk increases as internal springs and seals wear unevenly.
In 2026, ball cartridges are considered transitional technology.
They are gradually being replaced by ceramic disc cartridges in most markets.

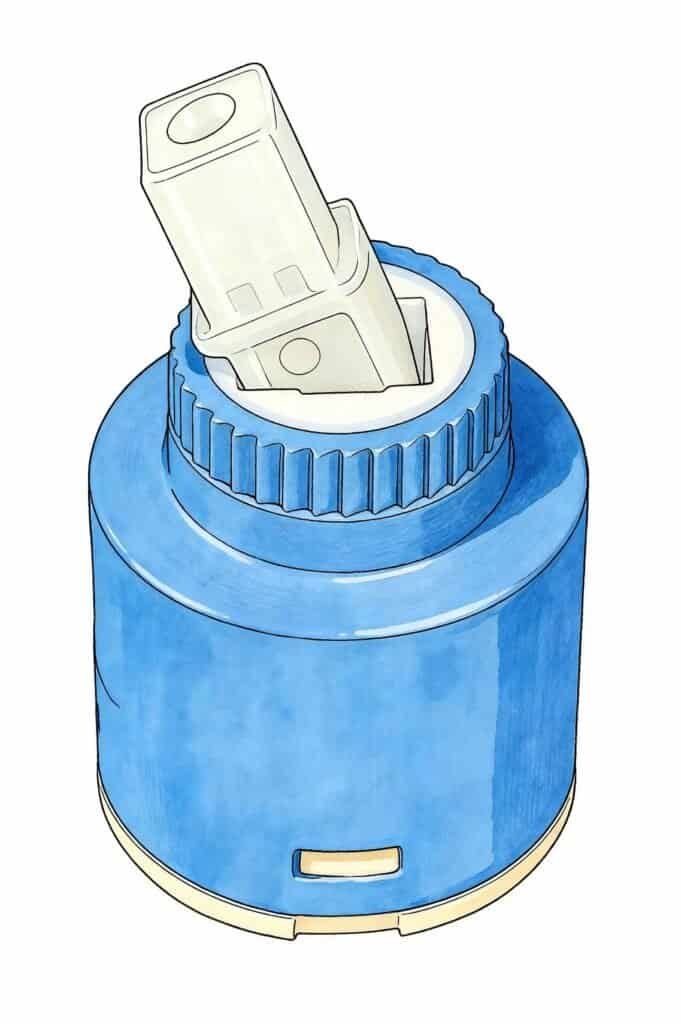

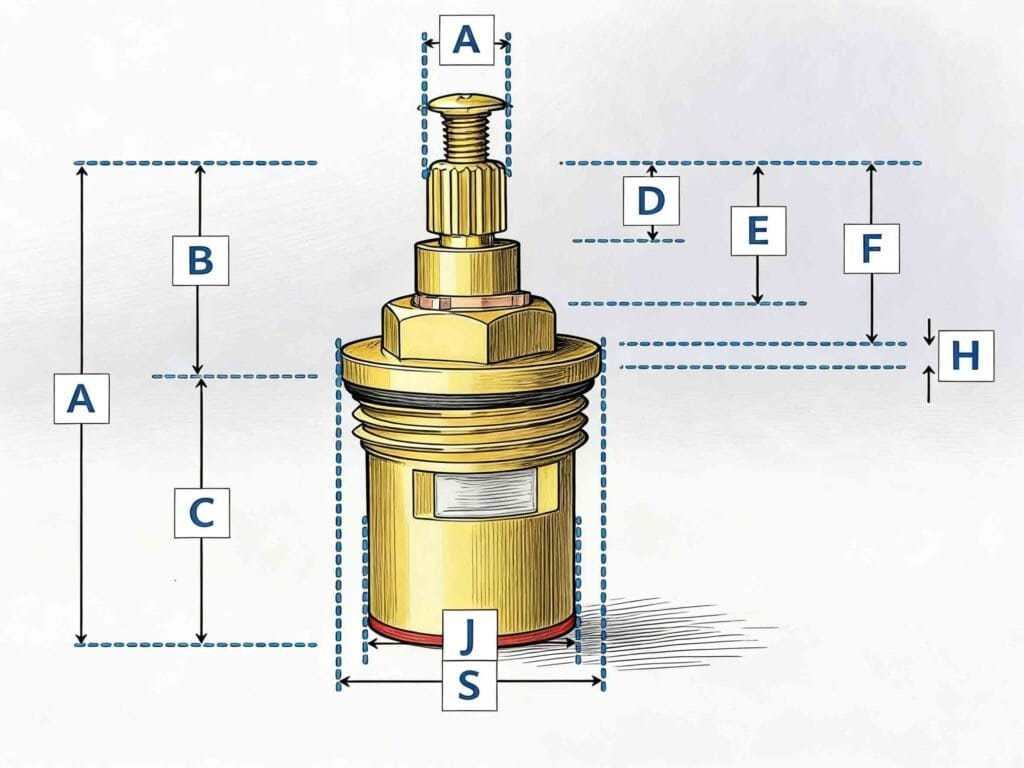

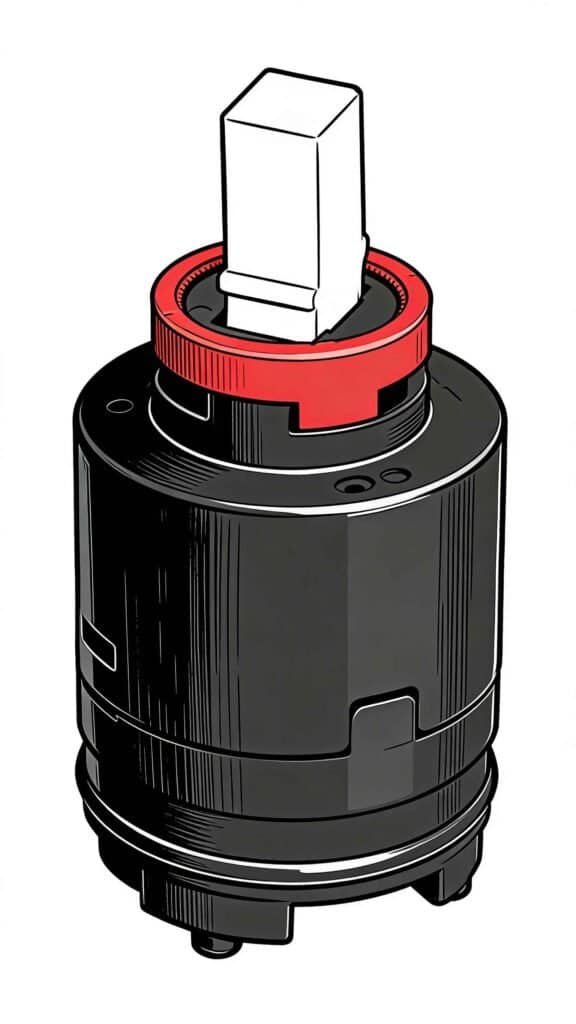

3.3 Ceramic Disc Cartridges (Modern Global Standard)
Ceramic disc cartridges are the most widely used faucet cartridge type today.
They control water flow using two precision-polished ceramic discs.
One disc remains stationary while the other moves smoothly on top.
Water flow is controlled by aligning or misaligning laser-cut openings in the discs.
Because ceramic surfaces are extremely hard and smooth, friction is minimal.
This dramatically reduces wear and sealing degradation.
Ceramic disc cartridges offer the lowest leakage rate among mainstream cartridge types.
They also maintain consistent performance over hundreds of thousands of cycles.
In 2026, ceramic cartridges are the default choice for residential and commercial faucets.
They are especially favored in low-maintenance and high-usage environments.
3.4 Thermostatic Cartridges (Temperature-Control Specialists)
Thermostatic cartridges are designed to maintain a constant water temperature.
They automatically adjust hot and cold water balance in response to pressure changes.
Inside the cartridge, temperature-sensitive elements expand or contract.
This mechanical response regulates flow to prevent sudden temperature spikes.
Thermostatic cartridges are commonly used in showers, hotels, and healthcare facilities.
Their primary advantage is anti-scalding protection.
From a leakage standpoint, thermostatic cartridges perform well when properly manufactured.
However, their internal structure is more complex than standard ceramic cartridges.
In 2026, thermostatic cartridges are considered a premium solution.
They are selected for safety and comfort rather than cost efficiency alone.
3.5 Plastic vs Brass Cartridge Housings (Often Overlooked Difference)
Beyond cartridge type, housing material also affects durability.
Most faucet cartridges use either plastic or brass outer shells.
Plastic housings reduce cost and weight.
However, they are more sensitive to heat, pressure, and long-term deformation.

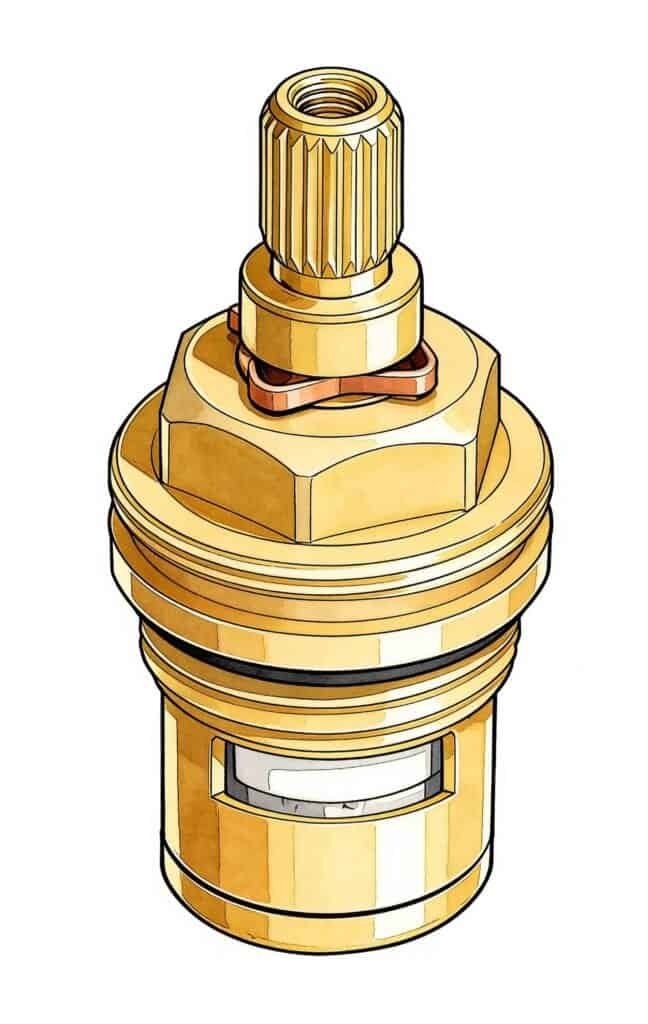

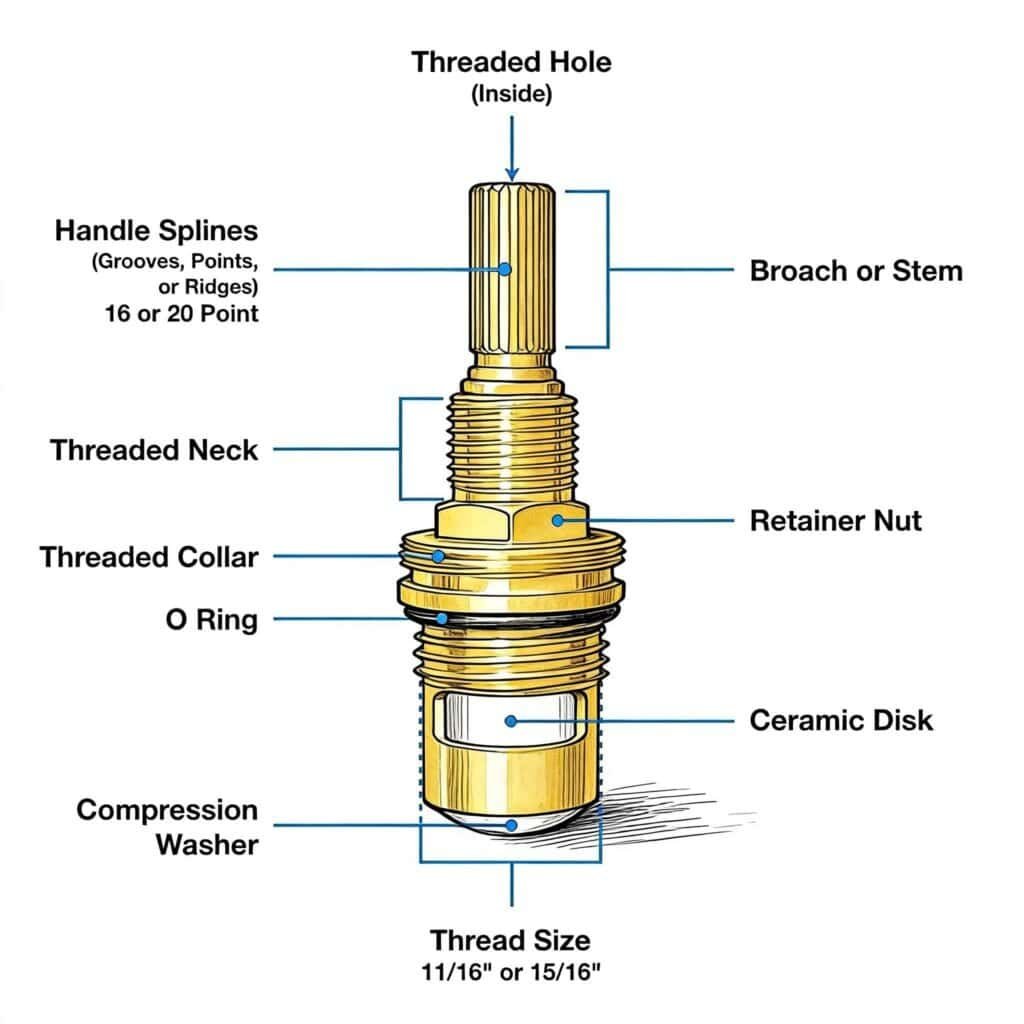

Brass cartridge housings offer higher structural stability.
They are less likely to warp under thermal cycling.
In high-end or commercial faucets, brass-housed ceramic cartridges are preferred.
This combination delivers superior leakage resistance and lifespan.
3.6 Summary: How Cartridge Type Determines Faucet Reliability
Each faucet cartridge type represents a different engineering philosophy.
Sealing method, material choice, and internal complexity all affect performance.
In real-world use, ceramic disc cartridges consistently outperform older designs.
They offer the best balance between durability, leakage prevention, and maintenance cost.
This explains why most modern faucet standards now favor ceramic cartridge systems.
In the next section, we will compare these cartridge types directly in terms of lifespan and leakage risk.
How to Replace a Ceramic Faucet Cartridge?
Ceramic Disc vs Other Faucet Cartridge Types: Full Technical Comparison
Not all faucet cartridge types perform equally under long-term daily use.
In real-world conditions, differences in sealing method and material precision become critical.
This section compares ceramic disc cartridges with compression, ball, and thermostatic designs.
The comparison focuses on lifespan, leakage risk, and maintenance behavior.

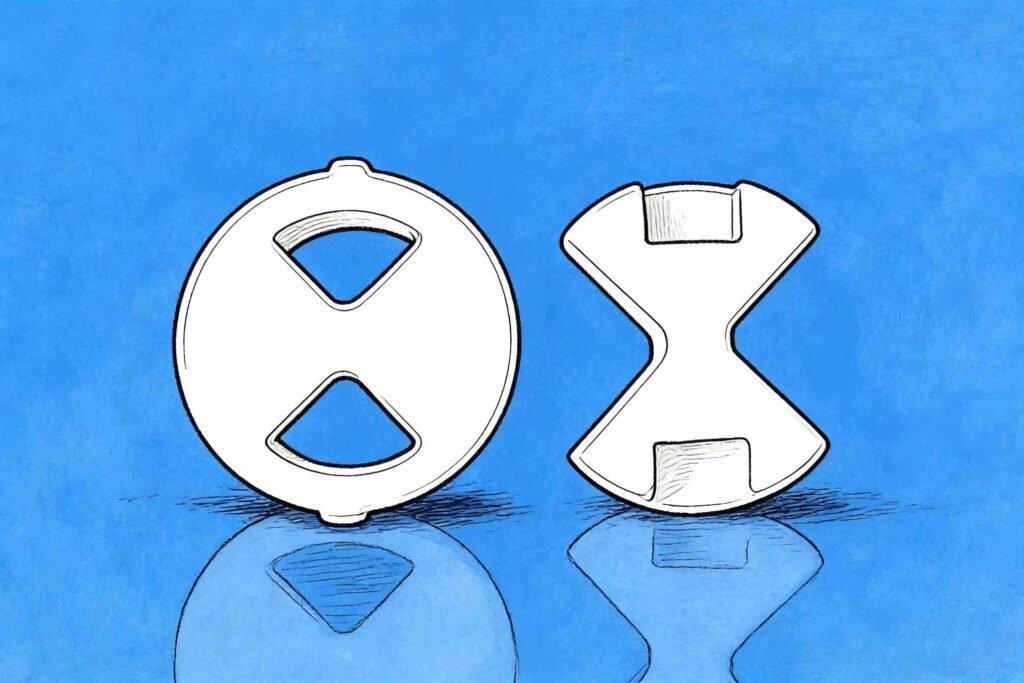

4.1 Sealing Mechanism Comparison: Why Ceramic Disc Seals Better
Compression cartridges rely on rubber washers to stop water flow.
These washers deform each time the faucet is closed.
Ball cartridges use multiple rubber seals supported by springs.
Each seal introduces another potential leakage point.
Ceramic disc cartridges seal by surface contact between two polished ceramic plates.
The seal is achieved through flatness, not compression.
Because there is almost no elastic deformation, wear is extremely low.
This explains why ceramic disc cartridges maintain sealing performance for much longer periods.

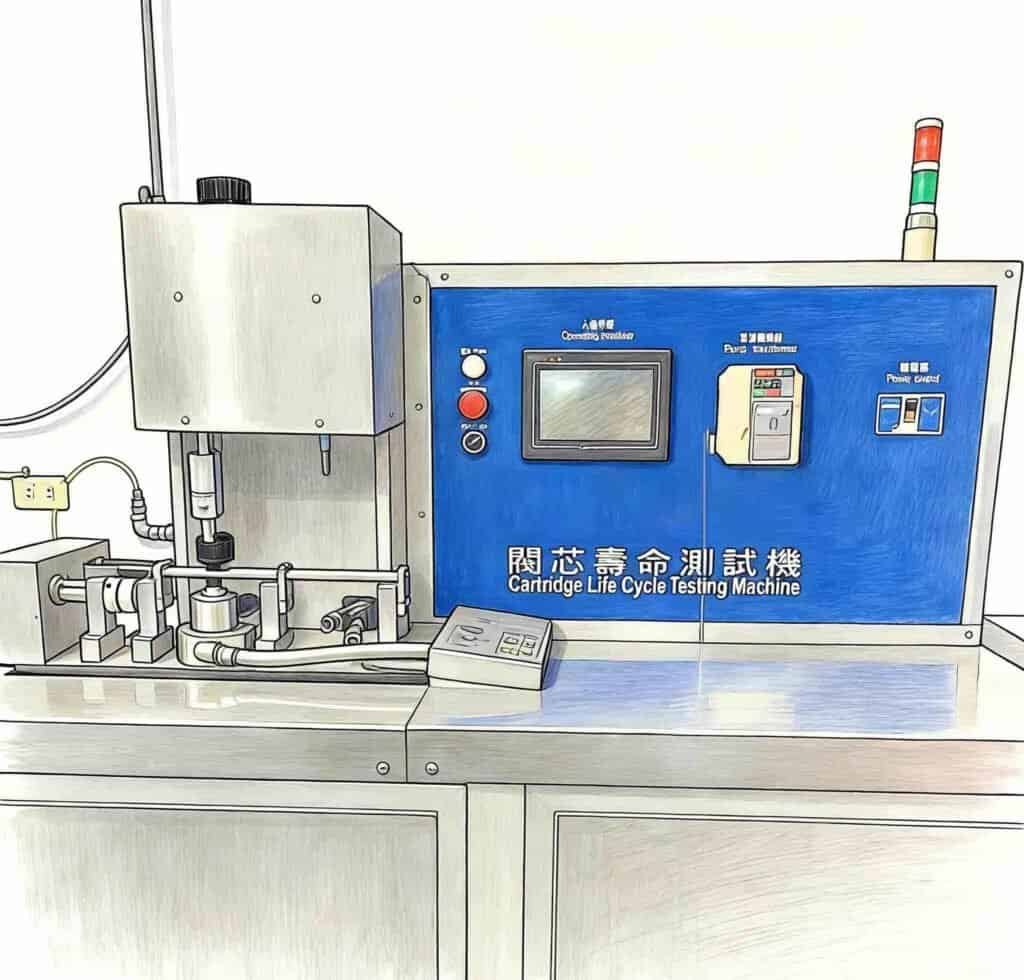

4.2 Lifespan Comparison: Average Usage Cycles Explained
Faucet cartridge lifespan is often measured in on–off cycles.
Each cycle represents one full open and close operation.
Compression cartridges typically fail within tens of thousands of cycles.
Washer fatigue and valve seat wear accelerate leakage.
Ball cartridges perform better but still rely on multiple rubber components.
Uneven seal wear shortens their effective lifespan.
Ceramic disc cartridges are commonly tested beyond 500,000 cycles.
Many high-quality ceramic cartridges exceed this benchmark without leakage.
4.3 Leakage Risk Comparison Under Real Water Conditions
Leakage risk increases with water pressure fluctuation and mineral content.
Hard water accelerates rubber degradation in traditional cartridges.
Compression and ball cartridges are especially sensitive to mineral buildup.
Scale formation interferes with seal contact.
Ceramic disc surfaces are highly resistant to scaling.
Their smooth finish minimizes mineral adhesion.
As a result, ceramic disc cartridges show the lowest leakage rate in hard-water regions.
This makes them suitable for global markets with varying water quality.
4.4 Maintenance Frequency and Service Cost Comparison
Maintenance cost is not only about parts replacement.
Labor cost often exceeds the price of the cartridge itself.
Compression cartridges require frequent washer replacement.
Each service visit adds cumulative cost over time.
Ball cartridges require more complex servicing due to internal springs and seals.
Incorrect reassembly often causes recurring leaks.
Ceramic disc cartridges require minimal maintenance.
In many cases, they function reliably for years without service intervention.
How to Replace a Ceramic Faucet Cartridge?
4.5 Temperature Stability and User Experience Differences
Temperature stability is another overlooked factor in cartridge performance.
Inconsistent mixing leads to user discomfort and safety concerns.
Compression cartridges offer limited temperature control accuracy.
Small handle movements can cause large temperature changes.
Ball cartridges improve mixing but lack precise control.
Wear further reduces stability over time.
Ceramic disc cartridges provide smooth, predictable control.
This is due to precise disc movement and stable flow paths.
4.6 Structural Complexity vs Reliability
Simpler structures often perform better over time.
Every additional component introduces a potential failure point.
Compression cartridges appear simple but depend heavily on soft materials.
Their reliability decreases quickly with wear.
Ball cartridges are mechanically complex.
Springs, seals, and moving parts increase leakage probability.
Ceramic disc cartridges use fewer wear-prone components.
This structural simplicity directly improves long-term reliability.
4.7 Ceramic Disc vs Other Cartridge Types
Cartridge Type | Sealing Method | Typical Lifespan | Leakage Risk | Maintenance Level |
Compression | Rubber washer compression | Short | High | High |
Ball | Multiple rubber seals | Medium | Medium | Medium |
Ceramic Disc | Polished ceramic surface | Long | Very Low | Very Low |
Thermostatic | Mixed mechanical control | Long | Low | Medium |
This comparison explains why ceramic disc cartridges dominate modern faucet design.
They outperform alternatives in both durability and leakage resistance.
In the next section, we will answer a critical buyer question.
Which faucet cartridge actually lasts the longest in real usage scenarios?
Which Faucet Cartridge Lasts the Longest? (Real-World Lifespan Explained)
When buyers ask which faucet cartridge lasts the longest, they usually expect a simple answer.
In reality, cartridge lifespan depends on design, materials, and operating conditions.
However, industry testing and field data consistently point to one conclusion.
Ceramic disc cartridges deliver the longest service life among mainstream faucet cartridge types.
5.1 How Faucet Cartridge Lifespan Is Measured
Faucet cartridge lifespan is measured using cycle testing.
One cycle equals one complete open-and-close operation.
Laboratory tests simulate years of daily use in accelerated conditions.
Pressure, temperature, and flow rate are carefully controlled.
For residential faucets, average daily use ranges from 20 to 50 cycles.
Commercial environments can exceed 200 cycles per day.
This makes cycle durability a critical indicator of real-world performance.
Short cycle life directly translates to early leakage and replacement.
5.2 Average Lifespan by Faucet Cartridge Type
Compression faucet cartridges usually fail first.
Rubber washers degrade rapidly under repeated compression.
In many cases, noticeable leakage appears within one to three years.
This is especially common in hard-water regions.
Ball faucet cartridges last longer than compression designs.
However, their multiple seals wear unevenly.
Typical lifespan ranges from five to eight years under normal residential use.
Maintenance frequency increases as internal components age.
Ceramic disc cartridges consistently outperform both designs.
High-quality ceramic cartridges are commonly rated for 500,000 cycles or more.
In practical terms, this equates to ten to twenty years of residential use.
In many installations, ceramic cartridges outlast the faucet body itself.
5.3 Why Ceramic Disc Cartridges Last Longer
Ceramic disc cartridges rely on surface contact, not material deformation.
There is no rubber washer being crushed with every operation.
The ceramic discs are precision-polished to extremely low surface roughness.
This creates a stable seal with minimal friction.
Because ceramic is harder than most minerals found in water, wear is minimal.
Even under high pressure, disc surfaces maintain their flatness.
As a result, sealing performance remains stable over time.
This is the primary reason ceramic disc cartridges achieve long service life.
5.4 Environmental Factors That Shorten Cartridge Lifespan
Water quality plays a major role in cartridge durability.
Hard water accelerates failure in rubber-based designs.
Compression and ball cartridges are particularly vulnerable to scale buildup.
Minerals interfere with seal contact and movement.
Ceramic disc cartridges are more resistant to mineral deposits.
Their smooth surfaces reduce scale adhesion.
Pressure fluctuation is another key factor.
Sudden pressure spikes stress internal components.
Well-designed ceramic cartridges tolerate pressure variation better.
This makes them suitable for regions with unstable water systems.
5.5 Residential vs Commercial Lifespan Expectations
Residential faucets experience moderate, predictable usage.
Ceramic disc cartridges often exceed their rated lifespan in these conditions.
Commercial faucets operate under heavier and more frequent use.
Hotels, offices, and public facilities push cartridges to their limits.
In commercial environments, ceramic disc cartridges still perform best.
They offer the longest maintenance intervals and lowest failure rates.
This is why developers and facility managers prioritize cartridge quality.
Longer cartridge lifespan directly reduces operating cost.
5.6 Lifespan Summary: Which Cartridge Truly Lasts the Longest?
Across testing data and field experience, results are consistent.
Ceramic disc cartridges last significantly longer than compression or ball types.
Their durability comes from material hardness, sealing method, and structural simplicity.
These advantages remain stable across different water conditions.
For buyers focused on long-term performance, ceramic disc cartridges are the clear choice.
In the next chapter, we will address another critical concern: which cartridge leaks the least.
Which Faucet Cartridge Lasts the Longest? (Real-World Lifespan Explained)
Faucet leakage is the most common failure reported by users.
In most cases, leakage originates from the internal cartridge rather than the faucet body.
To determine which faucet cartridge leaks the least, sealing mechanisms must be compared.
Leakage is not accidental; it is the result of predictable material and design behavior.
6.1 Primary Causes of Faucet Cartridge Leakage
Most faucet leaks develop gradually, not suddenly.
They begin as microscopic sealing failures.
Rubber-based seals lose elasticity over time.
Repeated compression leads to permanent deformation.
Mineral buildup further worsens the problem.
Scale prevents full seal contact and accelerates wear.
These factors explain why older cartridge designs leak more frequently.
The sealing method determines long-term leakage risk.
6.2 Compression Cartridges: Why Dripping Is Almost Inevitable
Compression cartridges rely on rubber washers to stop water flow.
Every shut-off action forces the washer against a metal seat.
This constant compression causes material fatigue.
Even high-quality rubber eventually hardens and cracks.
Once the washer loses elasticity, water seeps through the seal.
This results in the familiar slow drip.
Because wear is unavoidable, compression cartridges have the highest leakage rate.
They are unsuitable for long-term, low-maintenance use.
6.3 Ball Cartridges: Multiple Seals, Multiple Failure Points
Ball cartridges use several rubber seals supported by springs.
Each seal must maintain consistent pressure to prevent leakage.
Over time, springs weaken and seals wear unevenly.
This creates inconsistent sealing around the ball.
Even if only one seal degrades, leakage occurs.
This makes ball cartridges sensitive to material quality and assembly precision.
While leakage may not appear immediately, risk increases with age.
Maintenance becomes more frequent as components wear.
6.4 Ceramic Disc Cartridges: Why Leakage Is Minimal
Ceramic disc cartridges seal through flat surface contact.
There is no rubber washer being compressed.
The ceramic discs are polished to near-perfect flatness.
Water cannot pass between the discs when fully closed.
Because there is minimal friction, wear progresses extremely slowly.
Sealing performance remains stable over hundreds of thousands of cycles.
Ceramic material is also chemically stable.
It does not harden, swell, or degrade in water.
As a result, ceramic disc cartridges show the lowest leakage rate in real-world use.
This is confirmed by both laboratory testing and field data.
6.5 Thermostatic Cartridges: Leakage vs Complexity Trade-Off
Thermostatic cartridges use internal moving elements to control temperature.
Their structure is more complex than standard ceramic cartridges.
When manufactured to high standards, leakage risk is low.
However, complexity increases sensitivity to debris and scale.
Regular filtration and proper installation are essential.
Without these, leakage risk increases over time.
This makes thermostatic cartridges best suited for controlled environments.
They excel in safety but require higher system quality.
6.6 The Role of Manufacturing Precision in Leakage Prevention
Even the best cartridge design can fail if manufacturing quality is poor.
Surface flatness, tolerance control, and material consistency are critical.
In ceramic disc cartridges, polishing quality determines sealing performance.
Poorly finished discs can leak despite being ceramic.
O-ring quality also matters.
Low-grade rubber compounds degrade faster.
For buyers, leakage risk is reduced by choosing reputable manufacturers.
Testing standards and quality control matter as much as design.
6.7 Leakage Summary: Which Cartridge Leaks the Least?
Across all mainstream designs, results are clear.
Ceramic disc cartridges leak the least over long-term use.
Their sealing method avoids elastic deformation.
Material stability ensures consistent performance.
For applications where leakage is unacceptable, ceramic disc cartridges are the safest choice.
In the next chapter, we will explore how cartridge materials further influence durability and leakage.
Cartridge Materials Explained: How Brass, Plastic, and Ceramic Affect Lifespan and Leakage
When buyers compare faucet cartridges, they often focus on cartridge type.
However, material selection is just as important as structural design.
Cartridge materials determine strength, stability, and resistance to long-term wear.
They also directly influence leakage risk under pressure and temperature changes.
7.1 Why Cartridge Materials Matter More Than Most Buyers Expect
A faucet cartridge operates under constant pressure and repeated movement.
It is exposed to hot water, cold water, and mineral content every day.
Inferior materials deform, age, or degrade faster.
This leads to premature leakage even if the cartridge design is correct.
High-quality materials maintain shape and sealing integrity.
They extend service life and reduce maintenance frequency.
7.2 Ceramic Discs: The Core Sealing Material
Ceramic discs are the heart of modern faucet cartridges.
They are typically made from high-purity alumina ceramic.
This material is extremely hard and wear-resistant.
It maintains flatness even after hundreds of thousands of cycles.
The surface of ceramic discs is precision-polished.
Flatness and smoothness are critical for leak-free sealing.
Unlike rubber or plastic, ceramic does not age or harden in water.
This stability is why ceramic disc cartridges leak the least over time.
7.3 Brass Cartridge Housings: Structural Stability and Longevity
The cartridge housing supports all internal components.
It must remain dimensionally stable under pressure and temperature variation.
Brass housings offer excellent mechanical strength.
They resist deformation even in hot water environments.
Brass also tolerates repeated thermal expansion better than plastic.
This prevents internal misalignment that can cause leakage.
For commercial and high-end faucets, brass-housed cartridges are preferred.
They deliver longer lifespan and consistent performance.
7.4 Plastic Cartridge Housings: Cost vs Performance Trade-Off
Plastic cartridge housings are widely used in entry-level faucets.
They reduce cost and weight.
However, plastic is more sensitive to heat and pressure.
Long-term exposure can cause slight deformation.
Even small dimensional changes affect sealing alignment.
This increases leakage risk over time.
Plastic housings can perform acceptably in light residential use.
They are less suitable for high-usage or commercial environments.
7.5 O-Rings and Seals: Small Components, Big Impact
O-rings play a supporting role in cartridge sealing.
They prevent water from bypassing the cartridge body.
Material quality is critical.
Low-grade rubber hardens and cracks faster.
High-quality cartridges use durable rubber compounds.
These maintain elasticity over a longer period.
While ceramic discs handle primary sealing, o-rings protect secondary seals.
Poor o-ring quality can still cause leakage.
7.6 Material Combinations That Deliver the Best Performance
The most reliable faucet cartridges use a balanced material approach.
Each component is optimized for its function.
The best-performing combination includes:
Ceramic discs for primary sealing
Brass housing for structural stability
High-grade rubber o-rings for secondary sealing
This combination minimizes wear and leakage risk.
It also maximizes cartridge lifespan in both residential and commercial use.
7.7 Material Summary: What Buyers Should Prioritize
Material choice directly affects long-term faucet performance.
Ignoring materials leads to false cost savings.
Ceramic disc cartridges with brass housings offer the highest reliability.
They perform consistently under varied water conditions.
For buyers focused on durability and low maintenance, materials matter as much as design.
In the next chapter, we will explore how cartridge design details further influence leakage behavior.
How Cartridge Design Directly Affects Faucet Leakage
Even with high-quality materials, poor cartridge design can still cause leakage.
Leakage is often the result of design decisions, not just material failure.
In faucet engineering, small structural details determine long-term sealing reliability.
Understanding these design factors helps buyers avoid hidden leakage risks.
8.1 Sealing Surface Design: Flatness Matters More Than Pressure
Many people assume stronger pressure creates a better seal.
In reality, excessive pressure accelerates wear.
Compression-based designs rely on force to stop water.
This causes rapid material fatigue.
Ceramic disc cartridges rely on extreme surface flatness.
Sealing occurs through precise surface contact, not compression.
This design minimizes friction and wear.
As a result, leakage resistance improves over time rather than degrading quickly.
8.2 Tolerance Control: Why Precision Reduces Leakage
Tolerance refers to allowable dimensional variation between components.
Poor tolerance control creates micro-gaps inside the cartridge.
These gaps allow water to bypass sealing surfaces.
Leakage may start slowly but worsens with use.
High-quality cartridges maintain tight tolerances.
This ensures consistent alignment between moving parts.
Ceramic disc cartridges benefit most from precision manufacturing.
Proper tolerance control keeps sealing surfaces perfectly aligned.
8.3 O-Ring Quantity vs Reliability: More Is Not Always Better
Some cartridge designs use multiple o-rings to improve sealing.
However, each o-ring introduces another potential failure point.
As o-rings age, elasticity decreases.
Multiple degraded o-rings increase leakage risk.
Well-designed cartridges minimize o-ring count.
They rely on primary sealing surfaces instead.
Ceramic disc cartridges typically use fewer o-rings.
This simplifies sealing and improves long-term reliability.
8.4 Flow Path Design and Pressure Distribution
Internal flow paths influence how pressure is distributed.
Uneven pressure stresses sealing surfaces.
Sharp turns or restricted channels increase turbulence.
This accelerates internal wear.
Optimized cartridge designs balance flow smoothly.
Pressure is evenly distributed across sealing areas.
Ceramic disc cartridges often feature streamlined flow paths.
This reduces internal stress and leakage potential.
8.5 Handle Movement Design and Seal Wear
Handle movement determines how sealing surfaces interact.
Abrupt or uneven motion increases wear.
Low-quality cartridges produce jerky handle movement.
This leads to uneven disc contact.
High-quality ceramic cartridges offer smooth, controlled motion.
This ensures even wear across sealing surfaces.
Even wear extends service life.
It also maintains consistent leakage resistance.
8.6 Design Simplicity vs Long-Term Performance
Complex designs may appear sophisticated.
In practice, complexity often reduces reliability.
Each additional component introduces friction and tolerance risk.
Over time, these accumulate into leakage issues.
Ceramic disc cartridges use simple, robust designs.
Fewer moving parts mean fewer failure points.
This simplicity explains their superior leakage performance.
It also supports easier quality control during manufacturing.
8.7 Design Summary: Why Cartridge Engineering Matters
Leakage is rarely caused by a single factor.
It is the result of cumulative design decisions.
Cartridges that prioritize flat sealing surfaces, tight tolerances, and simple structures perform best.
These principles are most effectively implemented in ceramic disc cartridges.
For buyers focused on long-term reliability, design quality is non-negotiable.
In the next chapter, we will examine cartridge size and compatibility issues that often lead to unexpected leaks.
Cartridge Size & Compatibility Issues Buyers Often Miss
Many faucet leaks are not caused by poor cartridge quality.
They are caused by incorrect cartridge size or compatibility mismatches.
This problem is common in replacement scenarios and OEM sourcing.
It is often overlooked until leakage occurs.
9.1 Common Faucet Cartridge Sizes Explained
Faucet cartridges are manufactured in standardized diameter sizes.
The most common sizes are 25mm, 35mm, and 40mm.
Each size corresponds to a specific faucet body design.
Even small size differences affect sealing alignment.
A cartridge that is slightly too small can shift under pressure.
A cartridge that is too large may deform seals during installation.
Both situations increase leakage risk.
Correct sizing is critical for long-term performance.
9.2 Why “Almost Fits” Still Causes Leaks
Many installers assume similar cartridge sizes are interchangeable.
This assumption leads to problems.
Even a 1–2 mm mismatch affects internal alignment.
Sealing surfaces may not contact evenly.
Uneven contact accelerates wear.
Leakage may appear weeks or months later.
This delayed failure makes diagnosis difficult.
The cartridge is often blamed unfairly.
9.3 OEM vs Aftermarket Cartridge Compatibility Risks
OEM cartridges are designed specifically for a faucet model.
Their dimensions and tolerances match the faucet body precisely.
Aftermarket cartridges may claim compatibility.
In reality, tolerance differences often exist.
These small differences create micro-gaps or stress points.
Over time, leakage becomes unavoidable.
For long-term reliability, OEM-matched cartridges are safer.
This is especially true for ceramic disc cartridges.

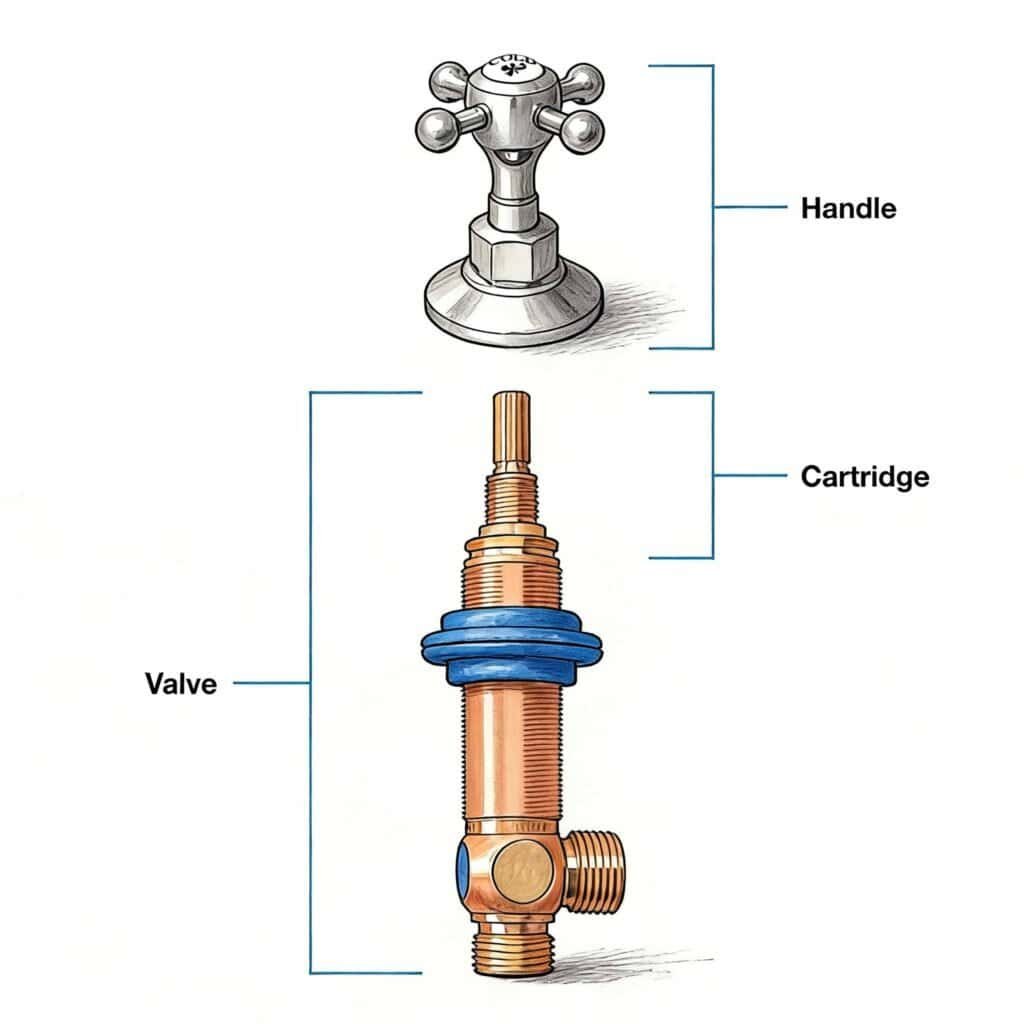

9.4 Stem Design and Handle Connection Issues
Cartridge stems connect the internal mechanism to the handle.
Stem length and spline shape vary by model.
If the stem does not match the handle correctly, torque is uneven.
This causes abnormal internal wear.
Uneven torque stresses sealing surfaces.
Leakage risk increases even with high-quality cartridges.
Correct stem compatibility is essential.
It affects both user experience and sealing durability.
9.5 Installation Errors Related to Compatibility
Improper installation often compounds compatibility problems.
Over-tightening is a common mistake.
Excessive force distorts cartridge housings and o-rings.
This creates permanent sealing defects.
Under-tightening causes movement during operation.
Micro-movement leads to gradual seal failure.
Correct installation torque is critical.
It ensures stable alignment and long-term leak resistance.
9.6 Compatibility Issues in Global Sourcing
In international sourcing, compatibility risks increase.
Different markets use different cartridge standards.
A cartridge suitable for one region may not fit another.
This is common in cross-border OEM projects.
Clear technical drawings reduce risk.
Dimensional confirmation should never be skipped.
For B2B buyers, compatibility planning prevents costly after-sales issues.
It also protects brand reputation.
9.7 Size & Compatibility Summary: Preventing Avoidable Leaks
Many faucet leaks are preventable.
They result from size or compatibility errors, not poor design.
Correct cartridge diameter, stem design, and OEM matching are essential.
These factors matter as much as material quality.
By addressing compatibility early, buyers reduce failure rates significantly.
In the next chapter, we will connect everything together by explaining why cartridge choice is the core of low-maintenance faucet design.
Low-Maintenance Faucets: Why Cartridge Choice Is the Core
Low-maintenance faucets are no longer a premium feature.
In 2026, they are a basic requirement for residential and commercial projects.
At the center of low-maintenance performance is the faucet cartridge.
Cartridge choice determines how often a faucet requires service or replacement.
10.1 Why Maintenance Cost Matters More Than Initial Price
Initial faucet cost is easy to compare.
Maintenance cost accumulates quietly over time.
Each service visit includes labor, downtime, and potential water damage.
These costs often exceed the price of the faucet itself.
For developers and facility managers, maintenance predictability is critical.
Unexpected leaks disrupt operations and budgets.
This is why cartridge reliability has become a primary selection factor.
A low-maintenance faucet starts with the right cartridge.
10.2 Cartridge Failure Is the Main Cause of Faucet Maintenance
Most faucet failures are internal.
The external body rarely fails first.
Leakage, handle stiffness, and temperature instability all originate in the cartridge.
Replacing decorative components does not solve these issues.
By selecting a durable cartridge, maintenance frequency drops significantly.
This reduces long-term operating cost.
This relationship is well understood in commercial projects.
It is increasingly recognized in residential developments.
10.3 Why Ceramic Disc Cartridges Define Low-Maintenance Faucets
Ceramic disc cartridges require minimal servicing.
Their sealing surfaces resist wear and mineral buildup.
Unlike rubber-based designs, they do not require frequent part replacement.
Performance remains stable over years of daily use.
In many installations, ceramic cartridges function without intervention for a decade or more.
This makes them ideal for low-maintenance requirements.
Developers prefer ceramic cartridges because they reduce callbacks.
Fewer complaints mean lower after-sales costs.
10.4 Maintenance Comparison: Cartridge Types Over 10 Years
When evaluated over a ten-year period, differences become clear.
Compression cartridges require repeated washer replacement.
Ball cartridges need seal and spring maintenance.
These tasks add labor cost.
Ceramic disc cartridges typically require no service within the same period.
Their maintenance cost is minimal.
Thermostatic cartridges offer advanced control but require more system care.
They are best used where safety outweighs maintenance simplicity.
10.5 Why Property Developers Standardize Cartridge Specifications
Developers manage hundreds or thousands of units.
Standardization simplifies maintenance planning.
Using a single cartridge type reduces spare part inventory.
Training requirements for maintenance staff are minimized.
Ceramic disc cartridges support standardization.
Their reliability reduces variation across installations.
This is why many developers specify cartridge type in procurement documents.
It is no longer left to chance.
10.6 Cartridge Choice and Water Efficiency Goals
Leak-free performance supports water-saving initiatives.
Even small drips waste significant water over time.
Ceramic disc cartridges shut off water completely.
They prevent micro-leakage common in worn rubber seals.
This supports compliance with modern water efficiency regulations.
It also aligns with sustainability targets.
Low-maintenance and water efficiency go hand in hand.
Cartridge choice connects both goals.
10.7 Low-Maintenance Summary: Why the Cartridge Is Non-Negotiable
Low-maintenance faucets depend on internal engineering.
The cartridge is the most critical component.
Ceramic disc cartridges offer the best balance of durability, leakage prevention, and low service needs.
They form the foundation of modern low-maintenance faucet design.
In the next chapter, we will help users identify early warning signs.
Recognizing cartridge failure early prevents costly damage.
Signs Your Faucet Cartridge Is Failing
Even the best cartridges eventually show signs of wear.
Recognizing these early prevents water damage and costly maintenance.
11.1 Dripping or Constant Leak
The most obvious sign of cartridge failure is water dripping from the spout.
Even when fully closed, a worn seal or misaligned disc allows water to escape.
Compression and ball cartridges drip first due to rubber seal wear.
Ceramic disc cartridges rarely leak, but improper installation or damage can cause minor drips.
Immediate action: inspect the cartridge, check for debris, and replace if necessary.
11.2 Stiff or Difficult Handle Movement
If the handle is hard to move, it indicates internal friction.
Wear, scale buildup, or misalignment may be present.
Early signs in ball cartridges: uneven rotation, resistance.
In ceramic cartridges: usually caused by dirt or debris, not material wear.
Regular cleaning and lubrication may restore function. Persistent stiffness signals cartridge replacement.
11.3 Temperature Instability (Single-Handle Mixers)
If hot and cold water balance changes unexpectedly, the cartridge may be compromised.
This is common in single-handle mixers and thermostatic cartridges.
Check for irregular flow paths, worn seals, or internal debris.
Early detection avoids scalding and water waste.
11.4 Strange Noises or Water Hammer Effects
Banging or whistling sounds can indicate internal pressure fluctuation.
Worn cartridges fail to absorb pressure changes efficiently.
This can accelerate leakage in low-quality or plastic-housed cartridges.
High-quality ceramic cartridges generally resist these effects longer.
11.5 Visual Signs During Inspection
For faucets that allow cartridge access:
- Inspect for corrosion, cracks, or uneven wear.
- Rubber seals should remain flexible and intact.
- Ceramic surfaces should be smooth without scratches.
- Routine inspection helps extend lifespan and reduces unexpected failures.
Conclusion: Choosing the Right Faucet Cartridge Matters More Than Ever
In 2026, faucet buyers no longer evaluate faucets based solely on design or price.
Internal cartridge selection is the core factor affecting durability, leakage, and maintenance cost.
Key takeaways:
- Ceramic disc cartridges consistently outperform compression and ball types in both lifespan and leak resistance.
- Material quality — including ceramic, brass housing, and durable o-rings — is critical.
- Design details like flat sealing surfaces, tight tolerances, and smooth flow paths directly influence performance.
- Correct size and compatibility are essential to prevent avoidable leaks.
- Low-maintenance faucets rely on cartridge reliability to minimize servicing, water waste, and operational cost.
- Early detection of failure signs — dripping, stiff handles, temperature instability — allows preventive maintenance and reduces damage.
For residential, commercial, and B2B applications, investing in high-quality ceramic disc cartridges is the safest long-term choice.
This decision reduces leakage risk, extends faucet lifespan, supports sustainability goals, and ensures peace of mind for property managers and end-users alike.
Contact Faucetu to get more wholesale and customized faucet pricing.
English
Arabic
Dutch
French
German
Greek
Irish
Italian
Latin
Polish
Portuguese
Russian
Slovak
Spanish
Swedish
Turkish
