Replace a Ceramic Faucet Cartridge

In this comprehensive guide, we’ll be tackling the process of replacing a ceramic faucet cartridge. This article is essential for homeowners and DIY enthusiasts who want to save money by learning how to fix a leaking faucet or improve water flow without calling a professional plumber.

A worn-out or damaged cartridge can cause several issues, such as water leaks, very hot water, and inconsistent water temperature, not only in the sink faucet but also in the shower faucet. Some faucets use separate cartridges for hot and cold water, while others use one cartridge to control both.

We’ll cover everything from selecting the right ceramic faucet cartridge to the step-by-step process of installation. By the end of this article, you’ll have the confidence and knowledge to tackle faucet cartridge replacement on your own.

    Add a header to begin generating the table of contents

    Tips on Choosing the Right Ceramic Faucet Cartridge

    Before we dive into the process of replacing the cartridge, it’s crucial to know how to choose the right ceramic faucet cartridge. Here are some key features to consider:

    Compatibility

    Verify that the replacement cartridge is compatible with your faucet model. Check the manufacturer’s documentation or consult the manufacturer’s website to find a list of suitable cartridges. If possible, bring the old cartridge to the hardware store for reference to ensure you purchase the correct replacement.

    Material

    While ceramic cartridges are known for their durability and resistance to wear, other materials such as brass or plastic, may also be suitable for your needs. Evaluate each material’s advantages and disadvantages, considering factors such as longevity, performance, and cost.

    Flow Rate

    Cartridges have different flow rates that directly impact water pressure and overall performance of the faucet. Choosing a cartridge with a flow rate that matches your faucet’s specifications is essential to avoid issues such as weak flow of water or overly strong pressure.

    Temperature Control

    Some faucet cartridges come with built-in temperature control features that allow you to set a maximum water temperature, preventing scalding and ensuring a safe and comfortable user experience. Consider whether this feature is important for your needs, especially if you have children or elderly individuals in your household.

    By considering these factors, you’ll be able to identify the ideal ceramic faucet cartridge for your specific faucet model, ensuring a seamless replacement process and optimal performance.

    What You Need

    To replace a ceramic faucet cartridge, you’ll need the following tools and materials:

    • Replacement ceramic faucet cartridge
    • Adjustable wrench or pliers
    • Phillips screwdriver
    • Allen wrench
    • Plumber’s grease
    • Old cloth or towel
    • A container to catch any water that may spill
    ceramic faucet cartridge-tools

    Steps on Replacing a Damaged Ceramic Faucet Cartridge

    With the right tools and materials, you’re ready to begin replacing your damaged ceramic faucet cartridges. Follow these steps to ensure a successful and hassle-free installation:

    Step #1 – Find the Perfect Cartridge

    Selecting the right ceramic faucet cartridge is crucial for ensuring compatibility and optimal performance with your faucet. To make an informed choice, consider the factors mentioned above before purchasing a new cartridge.

    ceramic faucet cartridge

    Step #2 - Safely Shut Off the Water source and Relieve Pressure

    Before working on the faucet, it’s essential to safely shut off the water supply to avoid water damage, flooding, and potential injuries during the process. Follow these guidelines to ensure a secure and effective shut-off:

    Locate the Water source Valves

    Find the hot and cold water source valves beneath the sink. They are usually located on the water lines connected to your faucet and are often identifiable by their oval or round handles. Sometimes, the valves might be inside a cabinet or access panel.

    Turn Off the Water Supply

    Once you’ve located the hot and cold water source valves, turn them clockwise to shut them off. Ensure they are tightly closed to prevent water from flowing through the faucet during replacement.

    If you’re unsure which valve controls the water supply to your faucet, you can also shut off the main water source to your home as a precautionary measure. The main water supply valve is typically located near your water meter or where the water line enters your home.

    Relieve Pressure from the System

    After shutting off the water source, turn on the faucet to allow any water remaining in the pipes to drain out. This step relieves pressure from the plumbing system and minimizes the risk of water spillage when disassembling the faucet.

    Test the Water Flow

    Once the water source is shut off and pressure is relieved, check the faucet by turning it on and off to ensure that no water is flowing. Double-check the valves and ensure they are tightly closed if water is still flowing. Turn off the main water supply to your home and retest the faucet if necessary.

    Step #3 - Empty the Faucet or Shower Faucet and Prepare the Work Area

    After shutting off the water source, it’s important to release any water remaining in the pipes by opening the faucet. This step minimizes water spillage, making disassembling the faucet easier and preventing potential damage to the surrounding area. Follow these steps to empty the faucet and prepare your work area properly:

    Open the Faucet

    Turn on the faucet and let it run until all the water remaining in the pipes has drained out. This may take a few seconds to a minute, depending on the length of the pipes and the amount of water trapped inside. Make sure to open both the hot and cold-water sides to release water from both lines.

    Test the Water Flow

    Once you believe all the water has drained, turn the faucet on and off a few times to ensure that no more water is coming out. If water is still flowing, double-check that the water source valves are securely shut off and try again. This step confirms that the water source is indeed off and prevents unexpected water spills during cartridge replacement.

    Prepare the Work Area

    Before proceeding with the disassembly of the faucet, ensure that your work area is clean and well-lit. Place a towel or cloth on the countertop to protect the surface from scratches and to absorb any residual water that may escape during the process. Additionally, gather all your tools and materials and keep them within easy reach to streamline the replacement process.

    Keep a Bucket or Container Handy

    Having a bucket or container nearby is a good idea to catch any residual water that may spill from the faucet during disassembly. This precaution helps to prevent water damage to the surrounding area and makes cleanup easier.

    Step #4 - Secure the Drain and Organize Small Parts

    ceramic faucet cartridge-faucet cartridge

    When disassembling the faucet, it’s crucial to secure the sink’s drain and organize small parts to avoid losing them during the process. By taking these precautions, you ensure a smooth and efficient reassembly. Here’s how to secure the drain and keep track of small parts:

    Cover the Sink's Drain

    Place a cloth, towel, or drain cover over the sink’s drain to prevent small parts, such as screws, nuts, or decorative caps, from accidentally falling and getting lost. This simple precaution saves you time and frustration when reassembling the faucet.

    Use a Tray or Container for Small Parts

    Keep a small tray or container nearby to hold small parts as you disassemble the faucet. This helps you keep track of all the components and makes it easier to find them when it’s time to reassemble the faucet. Labeling each part or placing them in the order they were removed can further streamline the reassembly process.

    Take Photos for Reference

    As you disassemble the faucet, consider taking photos of each step to help you remember the order and orientation of the parts. These visual references can be invaluable when it’s time to reassemble the faucet, ensuring a seamless and error-free process.

    Securing the drain and organizing small parts protects your sink and plumbing and ensures a smooth and efficient ceramic faucet cartridge replacement process, making reassembly a breeze.

    Step #5 - Carefully Remove the Faucet Cap and Access the Handle Screw

    To access the handle screw and disassemble the faucet, it’s necessary to remove the decorative cap carefully. This step requires precision to avoid damaging the cap or the faucet handle. Follow these guidelines for successful removal:

    Choose the Right Tool

    Select a suitable tool for prying off the decorative cap, such as a flathead screwdriver or a plastic putty knife. If the cap is slightly loose, you may be able to remove it using your fingers. Be sure to use a tool that won’t scratch or damage the faucet’s finish.

    Gently Pry the Cap Off

    Insert the flathead screwdriver or plastic putty knife under the edge of the cap. Apply gentle, steady pressure to lift the cap away from the faucet handle. If the cap is stubborn or difficult to remove, try working the tool around the edge of the cap to loosen it gradually. Avoid using excessive force, as this can damage the cap or the handle.

    Keep the Cap Safe

    Once the decorative cap is removed, place it in your tray or container to prevent it from getting lost or damaged. This step helps you keep track of all the disassembled parts and ensures a smooth reassembly process.

    By carefully removing the faucet cap, you gain access to the handle screw, which is essential for disassembling the faucet and proceeding with the ceramic faucet cartridge replacement.

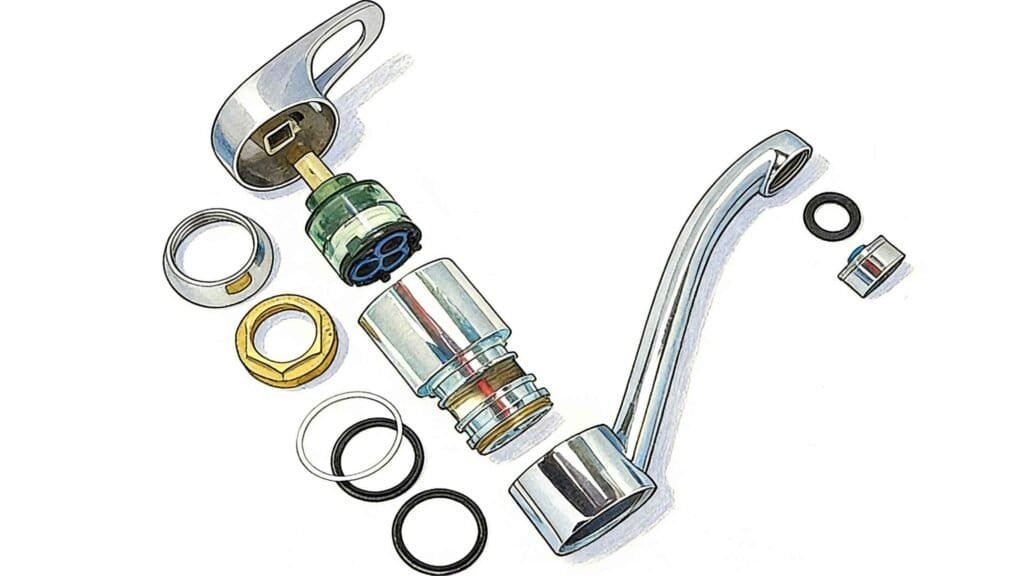

    Step #6 - Detach the Handle from Sink or Shower Faucet and Expose the Cartridge Assembly

    After removing the faucet cap, it’s time to detach the handle and expose the cartridge assembly. This step involves unscrewing the handle and lifting it off the body carefully. Follow these guidelines for successful handle removal:

    Identify the Type of Screw

    Inspect the handle screw to determine whether it requires a Phillips screwdriver or an Allen wrench for removal. The screwhead will either have a cross shape (for a Phillips screwdriver) or a hexagonal recess (for an Allen wrench). Choose the appropriate tool based on your observation.

    Loosen the Handle Screw

    Carefully insert the Phillips screwdriver or wrench into the screwhead, ensuring a secure fit. Gently turn the tool counterclockwise to unscrew the handle. Apply steady pressure and avoid using excessive force to prevent stripping the screw or damaging the handle.

    Lift the Handle Off the Faucet Body

    Once the handle screw is fully loosened, grasp the handle and lift it off the body, exposing the cartridge assembly beneath. If the handle is stuck or challenging to remove, try slowly tugging upward while gently wriggling it back and forth to release it from the cartridge stem.

    Keep the Handle and Screw Safe

    Place the removed handle and screw in your tray or container to keep track of them and prevent any loss or damage. This organization makes the reassembly process smoother and more efficient.

    Step #7 - Unfasten the Retaining Nut and Retaining Clip Without Damaging the Faucet Body

    The next step in replacing the ceramic faucet cartridge is to unfasten the retaining nut that holds the cartridge in place. Some faucet models may also have a retaining clip securing the cartridge. If present, carefully remove the retaining clip using needle-nose pliers. Be cautious not to scratch or damage the body during this process. This step requires careful handling to avoid scratching or damaging the body. Follow these steps to remove the retaining nut safely:

    Choose the Right Tool

    Select an appropriate tool, such as an adjustable wrench or pliers, to remove the retaining nut. Ensure that the tool’s jaw width can be adjusted to fit the size of the nut securely. If possible, use a wrench or pliers with padded or rubber-coated jaws to prevent damage to the faucet’s finish.

    Protect the Faucet Body

    Before unscrewing the retaining nut, consider protecting the body from potential scratches or damage. You can use a cloth, masking tape, or a rubber band to cover the area surrounding the nut, providing a barrier between the tool and the spout body.

    Loosen the Retaining Nut

    Gently grasp the retaining nut with the adjustable wrench or pliers, ensuring a secure grip. Turn the tool counterclockwise to loosen the nut, applying steady pressure and avoiding excessive force to prevent damage to the spout body or the nut.

    Remove the Retaining Nut

    Once the retaining nut is fully loosened, unscrew it by hand and lift it off the faucet body. Place the removed nut in your tray or container to keep track of it and prevent any loss or damage.

    Step #8 - Remove the Old Cartridge from the Sink or Shower Faucet and Clean the Faucet Body

    With the retaining nut removed, you’re now ready to extract the damaged cartridge and clean the faucet body. This step is crucial for removing any mineral deposits or debris that may have built up over time, ensuring a smooth installation of the new cartridge. Follow these guidelines for successful removal and cleaning:

    ceramic faucet cartridge-Remove the Old Cartridge
    Extract the Old Cartridge

    Grasp the stem of the cartridge with pliers and carefully pull the old cartridge out of the shower faucet. If the cartridge is stuck due to mineral deposits, you may need to wiggle it gently to loosen it. Take note of the cartridge’s orientation to ensure proper installation of the new cartridge. It’s also helpful to take a photo of the assembly to serve as a reference when installing the replacement.

    Inspect the Faucet Body

    Once the old cartridge is removed, inspect the spout body for any signs of damage, corrosion, or mineral buildup. Pay particular attention to the valve seat, as it may also require replacement if it’s worn or damaged.

    Clean the Faucet Body

    Remove any mineral deposits or debris present in the spout body using a soft brush or cloth. Stubborn deposits can be dissolved using a solution of white vinegar and water. Soak a cloth or paper towel in the solution and wrap it around the affected areas, allowing it to sit for a few hours before scrubbing gently with a soft brush. Rinse thoroughly with water to remove any residue.

    Replace Damaged Components

    If you find any damaged components or worn O-rings during the inspection, replace them with new parts to ensure optimal performance and prevent leaks. Be sure to apply plumber’s grease to the new O-rings for easier installation and better sealing.

    By thoroughly cleaning the spout body and replacing any damaged parts, you’ll create a solid foundation for installing the new ceramic faucet cartridge, ensuring a seamless fit and a leak-free, efficient faucet.

    Step #9 - Install the Replacement Cartridge with Ease

    Installing the replacement cartridge is essential in the ceramic faucet cartridge replacement process. Properly preparing the new cartridge and ensuring its correct orientation will ensure a successful and hassle-free installation. Follow these steps to install the replacement cartridge:

    Apply Plumber's Grease to the O-rings

    Before installing the new cartridge, apply a thin layer of the plumber’s grease to the O-rings. This lubrication eases the installation process, helps create a watertight seal, and extends the life of the O-rings. If you don’t have plumber’s grease, you can use silicone-based lubricants as an alternative.

    Verify the Correct Orientation

    Before inserting the new cartridge, make sure you know the correct orientation based on the old cartridge you removed earlier. Take note of any markings, notches, or tabs on the cartridge that should align with the faucet body to ensure proper installation.

    Carefully Insert the New Cartridge

    With the correct orientation in mind, carefully slide the new cartridge into the faucet body. Apply gentle pressure as you insert the cartridge, ensuring that the O-rings seat properly and the cartridge aligns with any designated notches or grooves in the spout body.

    Double-Check the Installation

    After installing the new cartridge, take a moment to double-check that it is seated correctly and securely in place. Verify that the orientation is accurate and that the cartridge is fully inserted into the faucet.

    Step #10 - Reassemble the Faucet Handle and Other Components

    ceramic faucet cartridge-cartridge

    Once you’ve installed the replacement cartridge, it’s time to reassemble the faucet to complete the process. By reversing the disassembly steps, you’ll ensure that all components are properly reconnected and your faucet is ready for use. Follow these steps to reassemble the faucet:

    Reattach the Retaining Nut

    Place the retaining nut back onto the faucet body, making sure it aligns correctly with the threads. Gently screw the nut onto the faucet body by hand to avoid cross-threading. Once it’s hand-tightened, use your adjustable wrench or pliers to secure the nut further, taking care not to overtighten or damage the faucet body.

    Reinstall the Handle

    Place the handle back onto the stem of the cartridge, ensuring that it aligns with the screw hole. You may need to rotate the handle slightly to find the correct position. Remember the handle orientation from the disassembly process to ensure a proper fit.

    Secure the Handle with the Screw

    With the handle in place, reinsert the screw you removed earlier using either a Phillips screwdriver or a wrench, depending on the screw type. Tighten the screw securely, but avoid overtightening to prevent damaging the handle or the stem of the cartridge.

    Replace the Decorative Cap

    Finally, place the cap back onto the handle, aligning it with the handle’s contours. Gently press the cap into place, ensuring a snug fit. The cap should sit flush with the handle, with no gaps or protrusions.

    By reassembling the faucet, you complete the ceramic faucet cartridge replacement process, restoring your faucet’s functionality and water movement. Always remember to turn the water source back on and test the faucet to ensure proper operation and the absence of leaks.

    Conclusion

    Replacing a ceramic faucet cartridge may seem like a daunting task, but with the right tools, materials, and guidance, you can easily accomplish it. This informative guide has equipped you with the knowledge and confidence needed to tackle this project independently, saving you money and time.

    By carefully selecting the right ceramic faucet cartridge and following the outlined steps, you’ll restore your faucet’s performance and prevent any leaks in no time. Don’t forget to refer to this article or visit faucet.com if you have any issues or questions. Good luck and happy DIY-ing!
